For the repair of swept bends up to 90°.

For pipes of DN100 and DN150. Patches of 600mm lengths. Especially designed for a smooth patch repair on a radius.

Must be used in conjunction with a specially-designed radius packer.

Available with summer or winter resin, for the best working and curing times for the ambient temperature. The following curing times and temperatures are based upon ambient conditions and are intended as a guide only:

[fusion_table fusion_table_type=”1″ hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]
Winter Resin (W)
Temperature Working Time (Mins) Curing Time (Mins)
8ºC (33ºF) 20-22 100-120
13ºC (55ºF) 18-20 90-110
18ºC (64ºF) 16-19 75-100
23ºC (73ºF) 15-17 60-70
28ºC (82ºF) 10-12 45-55
33ºC (91ºF) 7-9 40-45
Summer Resin (S)
Temperature Working Time (Mins) Curing Time (Mins)
8ºC (33ºF) 45-48 150-300
13ºC (55ºF) 41-45 130-150
18ºC (64ºF) 32-35 120-135
23ºC (73ºF) 30-32 90-100
28ºC (82ºF) 20-23 70-85
33ºC (91ºF) 14-16 65-75
[/fusion_table][fusion_table fusion_table_type=”1″ hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]

Product Range

Code Product Description
PDR100KITS PD Radius Repair Kit DN100 Pipe (Summer)
PDR100KITW PD Radius Repair Kit DN100 Pipe (Winter)
PDR150KITS PD Radius Repair Kit DN150 Pipe (Summer)
PDR150KITW PD Radius Repair Kit DN150 Pipe (Winter)
PDRP10/15 Asmbld Rad Packer for DN100 1500mm Long
PDRP15/15 Asmbld Rad Packer for DN150 1500mm Long
[/fusion_table]

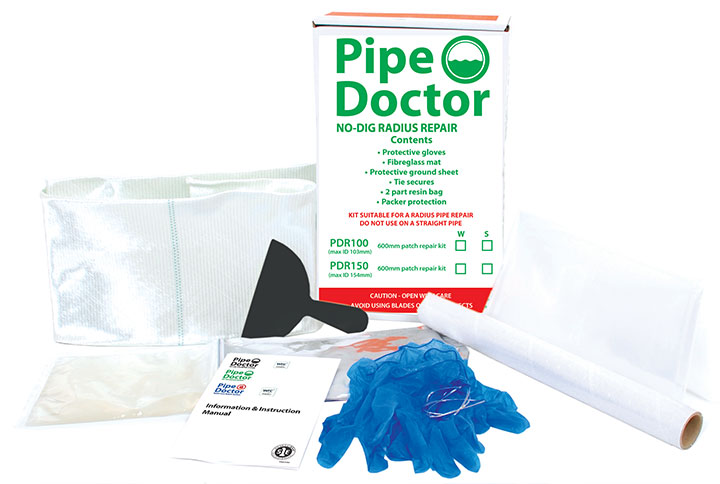

Pipe Doctor radius kit showing all contents
